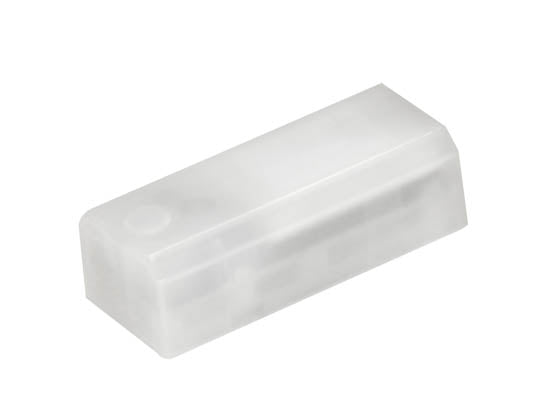

Basic Microwave Motion Sensor/Photocell Node for Maxlite C-Max Control Ready Fixtures

Adding a field installed Basic microwave motion sensor/photocell to Maxlite's C-Max is easy with the C-Max rectangular microwave motion sensor/photocell node.

• Simple plug 'n play connection
• Easy to install in the field with USB-C connection using pre-installed fixture receptacle
• Includes locking screw to prevent vandalism and withstand vibration
• Easy programming with Maxlite's IR remote # 105567 (sold separately). Save and store settings to minimize commissioning time
• 0-10V dimming method - with dim to off capability
• Bi-Level dimming
• Ability to set high trim
• Daylight harvesting via photocell (on/off)
• Connection port - USB-C
• Recommended mounting height - 8ft. - 15ft. Maximum mounting height 35ft.
• Title 20 compliant
• Operating voltage - 12-20VDC
• Not recommended for applications with other high frequency interference
