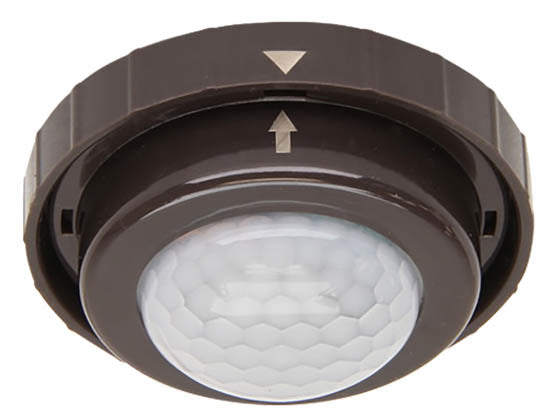

Basic PIR Motion Sensor/Photocell Node for Maxlite C-Max Control Ready Area Fixtures

Adding a Basic motion sensor/photocell capability to Maxlite's C-Max control ready Area fixtures is easy with the field installed C-Max PIR motion sensor/photocell node.

• Simple plug 'n play connection
• Easy to install in the field with USB-C connection using pre-installed fixture receptacle
• Includes locking screw to resist vandalism and withstand vibration - requires M1.5 allen wrench
• Easy programming with Maxlite's IR remote # 105567 (sold separately). Save and store settings to minimize commissioning time
• 0-10V dimming method with dim to off capability
• Bi-Level dimming
• Ability to set high trim
• Maximum mounting height 40 ft.
• Operating voltage - 12-20VDC
• Detection angle 120°
• IP66
• Title 20 compliant
• Not recommended for applications with other high frequency interference
