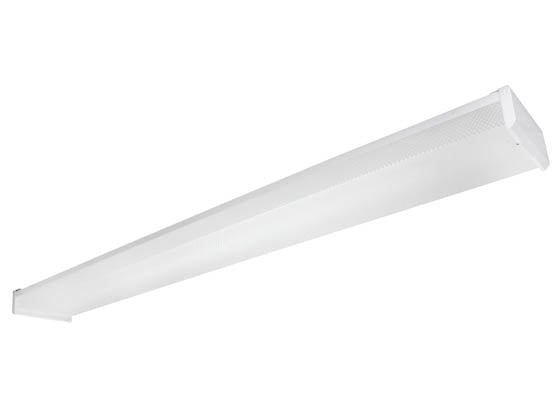

MaxLite Dimmable 4 ft. LED Utility Wrap Fixture - Wattage and Color Selectable - C-Max Compatible

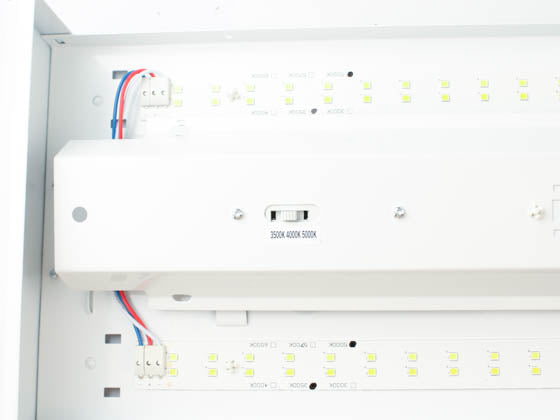

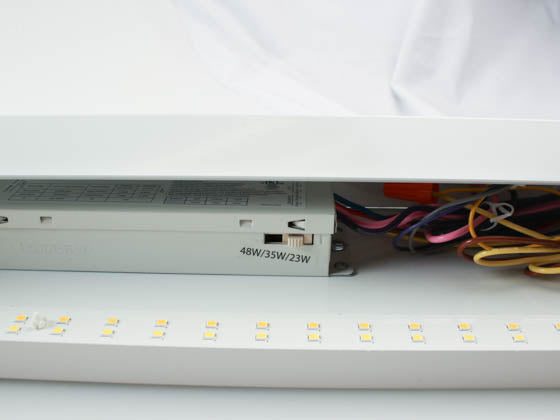

Maxlite's dimmable 4' LED Utility Wrap fixture is wattage selectable (23W/35W/48W) and kelvin selectable (3500K/4000K/5000K) . Use the available USB-C port to install a C-Max control node for motion sensing. A cost effective dimmable LED Utility Wrap fixture, features full length U Wrap acrylic lens and one piece fabricated steel body.

Applications - Utility lighting, parking garage and stairwell lighting

• Controls ready - Can be paired with Maxlite's C-Max control node # 105564 for motion sensing and daylight harvesting via photocell (on/off). Use maxlite remote control # 105567 for easy commissioning
• 0-10V dimming
• Default settings 23 watts and 4000K
• Equivalent up to a 3 x 32W T8 fluorescent
• Surface mounted (accessories sold separately)
• Back and end knockouts
• Clear acrylic prismatic lens
• Electrostatic paint pre-assembly
• 0-10V dimming - Compatible with Lutron NTSTV-DV-WH and DVSTV-WH, and Legrand/Wattstopper TSD4FBL3PTC and RH4FBL3PTC dimmers
• DLC Premium IDs:
  • Direct Linear Ambient - PKSR1C0L
  • Stairwell - PSW822H3; Control Node # 105564 must be used for motion sensing
  • Low Bay - PHR44N9G; The 35W setting must be used
  • Low Bay - PD34PMGQ; The 48W setting must be used
• 10 year limited warranty with labor allowance
  • Product must be rated for the application; operated ≤ 16 hours per day; in ambient -4°F to 77°F. For applications with ambient temperature greater than 77°F and up to 122°F the limited warranty is 5 years
  • Labor Allowance - Up to $25 per unit; registration required - Contact a Lighting Specialist for details
