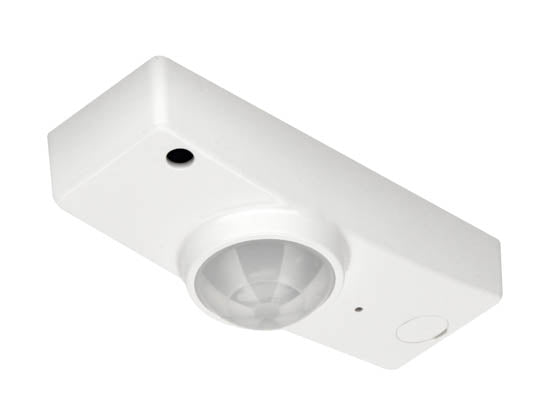

C-Max Network PIR Motion Sensor/Daylight Harvesting Node for Maxlite C-Max Control Ready Fixtures

Adding a field installed Network PIR motion sensor/daylight harvesting feature to Maxlite's C-Max indoor fixtures is easy with the C-Max rectangular Bluetooth Network PIR motion sensor/daylight harvesting node.

• Simple plug 'n play connection
• Easy to install in the field with USB-C connection using pre-installed fixture receptacle
• Easy commissioning with Maxlite's C-Max App (Available in IOS and Android)
  • Individual Addressability and/or Grouping
  • Multi-level dimming: Manual On/Off, Automatic On/Off and Automatic Partial On/Off control capability
  • Create scenes for more customized dimming scenarios
  • Time clock scheduling for individual lights, groups or scenes
  • High Trim/Tuning sets the maximum light level based on requirements in each space
• Local Bluetooth Network with no gateway needed
• Wireless Standard: BLE4.2 MESH IEEE 802.15.1
• Cybersecurity: UL1376 Bronze Rating Pending
• Connection port: USB-C
• Mesh Range: 100 ft. node-to-node and 50 ft. node-to-device (Commissioning)
• PIR Sensor Features:
  • Daylight Harvesting: On/Off
  • Motion Sensing: On/Off
  • First Time Delay: 1-59 minutes/infinite
  • Second Time Delay: 0-59 minutes/infinite
  • Dim Level: 1-100%
  • Mounting Height: 8-20 ft.
  • Detection Range: Up to 20 ft. diameter
  • Detection Horizontal Pattern: 360°
  • Detection Vertical Pattern: 90°
• Includes locking screw to prevent vandalism and withstand vibration
• Operating voltage: 12-20VDC
• Not recommended for applications with other high frequency interference
