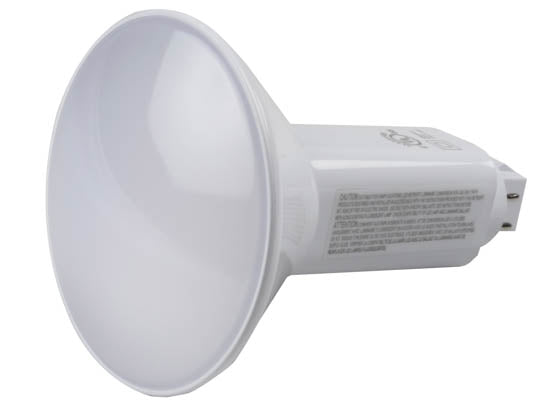

The vertical mounted PL LED lamp from Green Creative is a plug 'n play LED replacement for CFL downlights with a 4-pin G24q or GX24q (electronic ballast) socket. Voltage is ballast compatible 120-277V. Compatible with 13W, 18W, 26W, and 42W non-lensed fixtures only. Simply take out the existing CFL lamp and replace with the Green Creative PL LED lamp. No bypassing of the existing ballast is needed.
Compatible with 0-10v dimming ballasts and some non-mainstream off-brand ballasts.
Easy to install - Plug 'n play direct
Ballast output power control technology allows for high performance even on lower powered ballasts, making it a suitable replacement for 13W, 18W, 26W, and 42W CFL PL lamps
Lumen output
13W ballast -Â 540 lumens
18W ballast -Â 760 lumens
26W ballast -Â 1000 lumens
42W ballast - 1100 lumens
Not intended for use in fully enclosed fixtures
Do not "hot swap" this lamp. Turn off fixture before replacing existing bulb. If the lamp does not light when the luminaire is turned on, remove the lamp from the luminaire. If the lamp or luminaire exhibits undesirable operation (buzzing, flickering, etc.) immediately turn off power and remove lamp.
