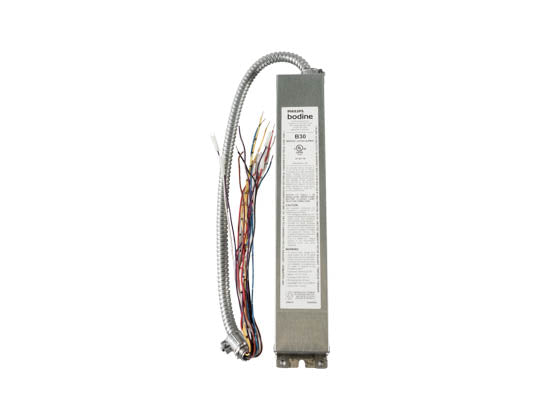

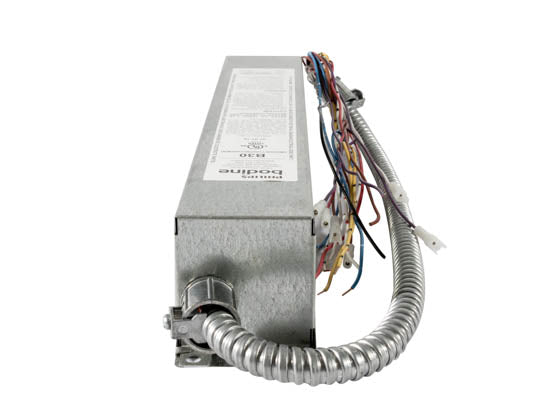

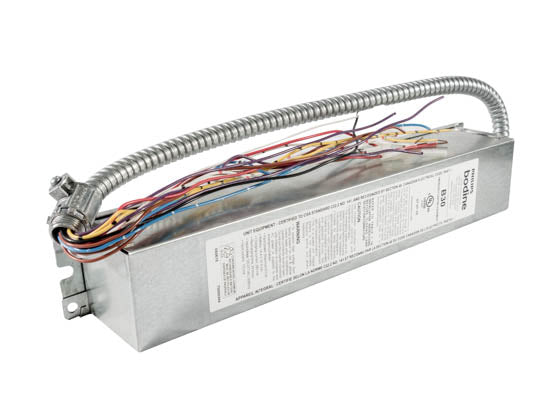

Philips Bodine B30 Linear Fluorescent Emergency Ballast For 1-2 Lamps - 17-215 Watts - 900-3500 Lumens

Philips Bodine B30 fluorescent emergency ballast works in conjunction with an AC ballast to convert new or existing fluorescent fixtures into emergency lighting. The emergency ballast consists of a nickel-cadmium battery, charger and electronic circuitry in one case. When AC power fails, the B30 immediately switches to the emergency mode, operating either one or two lamps at a reduced lumen output for a minimum of 90 minutes. When AC power is restored, the emergency ballast automatically returns to the charging mode and delays AC ballast operation for approximately three seconds to prevent false tripping of the AC ballast end-of-lamp life shutdown circuits.

• Can be used with most 17-215 watt (2'-8') T5, T8, T9, T10 or T12 fluorescent lamps without integral starters, including Ubent, HO, VHO, circline, energy saving and rapid start (4-pin) compact fluorescent lamps
• Can be used with either switched or unswitched fixtures
• Produces 900 to 3500 lumens of initial emergency light output, depending on the number of lamps (one or two), wattage and type of lamps
• Suitable for indoor and damp locations
• Battery
  • High temperature maintenance free
  • Nickel-Cadmium
  • 7-10 year life expectancy
• Recharge time - 24 hours
• Ambient temperature - 32ºF - 122ºF
• Two-wire illuminated test switch
• AC input current - 110mA
• Illumination time - 90 minutes

B30 Lamp Compatibility:

• 1-2 lamp, 17-40 watt, 2'-4', T8, T9, T10 and T12, single or bipin base
• 1 lamp, 40-215 watt, 5'-8', T8, T9, T10 and T12, single or bipin base
• 1 lamp, 18-55 watt, long compact 4-pin (2G11) base
• 1 lamp, 18-42 watt, twin/quad/triple, twin-tube compact, 4-pin (G24q, GX24q) base
• 1 lamp, 8.5-16.5 watt, 2'-4', Philips InstantFit LED T8, bipin base
• 1 lamp, 16.5 watt, Philips InstantFit LED T8 U-bend 6", bipin base
• 1 lamp, 16.5 watt, 22", Philips InstantFit LED twin-tube compact, 4-pin base
• 1 lamp, 16-55 watt, 2D, 4-pin (GR10g) base
• 1 lamp, 22-55 watt, T5 HO, HO circline 4-pin (2GX13) base
• 1 lamp, 24-54 watt, 2'-4', T5HO, miniature bipin base
• 1 lamp, 14-35 watt, 2'-5', T5, miniature bipin base
