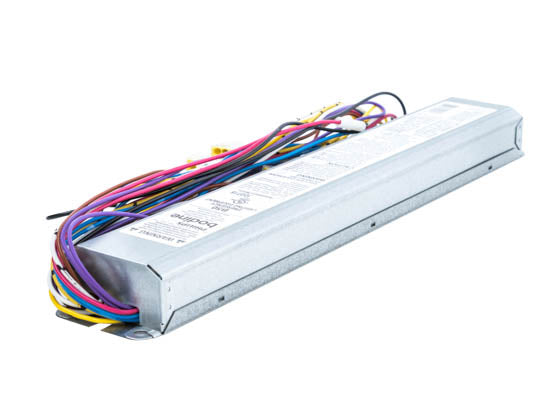

Philips Bodine B50 Linear Fluorescent Emergency Ballast For 1-2 Lamps - 17-215 Watts - Up to 1600 Lumens

Philips Bodine B50 fluorescent emergency ballast works in conjunction with an AC ballast to convert new or existing fluorescent fixtures into emergency lighting. The emergency ballast consists of a nickel-cadmium battery, charger and electronic circuitry in one case. When AC power fails, the B50 immediately switches to the emergency mode, operating either one or two lamps at a reduced lumen output for a minimum of 90 minutes. When AC power is restored, the emergency ballast automatically returns to the charging mode and delays AC ballast operation for approximately three seconds to prevent false tripping of the AC ballast end-of-lamp life shutdown circuits.

• Can be used with 1-2 lamp T8, T9, T10 and T12 fluorescent lamps. It operates one 22-55 watt (2'-4') T5 lamp, and also including standard, energy saving, HO, VHO, circline, U-bend and rapid start (4-pin) long compact fluorescent lamps. Also operates one 8.5-16.5 watt Philips LED T8 InstantFit lamp
• Compatible with most single and multi-lamp electronic and dimming AC ballasts
• Can be used with either switched or unswitched fixtures
• Produces up to 1600 lumens of initial emergency light output, depending on the number of lamps (one or two), wattage and type of lamps
• Suitable for indoor and damp locations and for sealed and gasketed fixtures, including fixtures rated for wet locations
• Battery
  • High temperature maintenance free
  • Nickel-Cadmium
  • 7-10 year life expectancy
• Recharge time - 24 hours
• Ambient temperature - 32ºF - 122ºF
• Two-wire illuminated test switch
• AC input current - 60mA
• Illumination time - 90 minutes

B50 Lamp Compatibility:

• 1-2 lamp, 17-40 watt, 2'-4', T8, T9, T10 and T12, single or bipin base
• 1 lamp, 40-215 watt, 5'-8', T8, T9, T10 and T12, single or bipin base
• 1 lamp, 18-39 watt, long compact 4-pin (2G11) base
• 1 lamp, 40-55 watt, long compact 4-pin (2G11) base
• 1 lamp, 13-42 watt, twin/quad/triple/twin-tube compact 4-pin (G24q, Gx24q) base
• 1 lamp, 15-54 watt, 2'-4', T5 & T5HO, miniature bipin base
• 1 lamp, 22-55 watt, T5& T5HO, HO circline base
• 1 lamp, 16-55 watt, 2D 4-pin (GR10q) base
• 1 lamp, 8.5-16.5 watt, Philips LED T8 InstantFit, Bipin base
