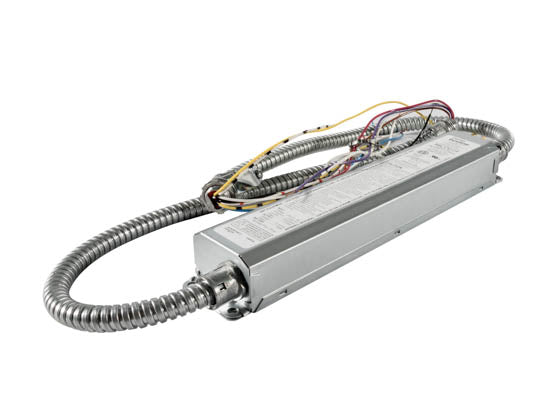

Philips Bodine BSL17C-C2 Emergency LED Driver - 7 Watts Output Power(BSL17CC2T1U)

Philips Bodine BSL17C-C2 emergency driver is ETL listed for factory or field installation and allows the same LED luminaire to be used for normal and emergency operation. The driver works in conjunction with an AC LED driver that has an output currrent not to exceed 1.5A. The driver has a high temperature nickel cadmium battery, charger and electronic circuitry in one compact case. When AC power fails, the BSL17C-C2 immediately switches to the emergency mode, operating the LEDs at a reduced lumen output for a minimum of 90 minutes. When AC power restored the emergency driver automatically returns to the charging mode.

• Can be used with an LED lighting load of up to 7 watts
• Suitable for indoor and damp locations and for sealed and gasketed fixtures, including fixtures rated for wet locations
• ETL listed for field or factory installation (indoor and damp)
• Illumination Time - 90 minutes
• AC Input Current - 45mA
• AC Input Power Rating - 2.75 watts
• Output Voltage - 15-50 VDC
• Output Power - 7 watts maximum
• Class 2 output
• 2-wire illuminated test switch
• High temperature, maintenance free nickel cadmium battery, 7-10 year life expectancy
• Battery Charging Current -180 mA
• Recharge Time - 24 hours
• Ambient Temperature - 32ºF-122ºF
• RoHS compliant
