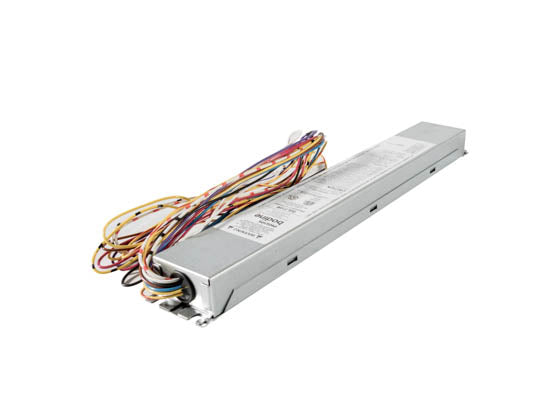

Philips Bodine BSL310M Emergency LED Driver - 10 Watts Output Power

Philips Bodine BSL310M emergency driver is ETL listed for field installation and allows the same LED luminaire to be used for normal and emergency operation. The driver works in conjunction with an AC LED driver that has an output currrent not to exceed 3.0 A. The driver has a high temperature nickel cadmium battery, charger and electronic circuitry in one compact case. When AC power fails, the BSL310M immediately switches to the emergency mode. Can supply an LED lighting load of up to 10 watts at a reduced lumen output for 90 minutes. When AC power is restored the emergency driver automatically returns to the charging mode.

• Can be used with an LED lighting load of up to 10 watts for 90 minutes
• Suitable for indoor and damp locations and for sealed and gasketed fixtures
• ETL listed for field installation (indoor and damp)
• Illumination Time - 90 minutes
• AC Input Current - 60mA
• AC Input Power Rating - 4 watts
• Output Current and Voltage
  • Without Selector
    • Minimum 200 mA, 30-50 VDC, minimum 300 mA over optimized range (30-34 VDC)
  • With Selector
    • Minimum 400 mA, 10-29 VDC
• Output Power - 10 watts maximum
• Output Class 2 compliant
• Illuminated test switch
• High temperature, maintenance free nickel cadmium battery, 7-10 year life expectancy
• Battery Charging Current - 180 mA
• Recharge Time - 24 hours
• Ambient Temperature - 32ºF-122ºF
• RoHS compliant
