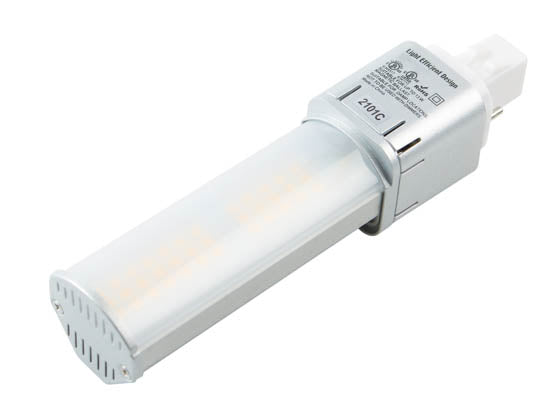

Light Efficient Design's non-dimmable horizontal 7 watt 2 pin GX23-2 base LED PL lamp is a hybrid that can either work with up to a 13W CFL ballast or a 120-277V line voltage bypass application.Â
Works with up to a 13W compatible electronic CFL ballast or line driven in a ballast bypass application
Minimum fixture dimensions 6" wide and 6" high
Can be installed base up, down or sideways
Suitable for dry and damp locations only
For use in open fixtures only. Not rated for use in enclosed fixtures.
Installation for plug 'n play application:Â
Power off the fixture
Carefully remove the installed CFL lamp(s)
Verify CFL ID information for compatibility with the LED lamp
Insert the LED lamp into all open socket(s) within the fixture
Turn power on
Do not "hot swap" this lamp. Turn off fixture before replacing existing bulb. If the lamp does not light when the luminaire is turned on, remove the lamp from the luminaire. If the lamp or luminaire exhibits undesirable operation (buzzing, flickering, etc.) immediately turn off power and remove lamp.
