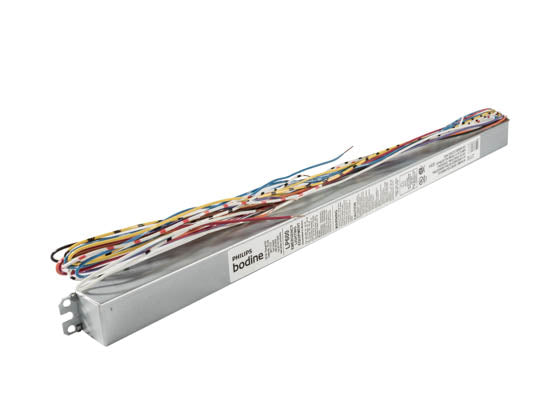

Philips Bodine LP600 Low Profile Linear Fluorescent Emergency Ballast For 1 Lamp T5 - T5HO - T8 and Long CFL - 600-1325 Lumens
Philips Bodine LP600 Low Profile Linear Fluorescent Emergency Ballast For 1 Lamp T5 - T5HO - T8 and Long CFL - 600-1325 Lumens
Philips Bodine LP600 low profile fluorescent emergency ballast works in conjunction with aa low-profile or standard AC ballast to convert new or existing standard or high output T5 and T8 fluorescent fixtures into emergency lighting. The emergency ballast consists of a nickel-cadmium battery, charger and electronic circuitry in one compact case. When AC power fails, the LP600 immediately switches to the emergency mode, operating either one or two lamps at a reduced lumen output for a minimum of 90 minutes. When AC power is restored, the emergency ballast automatically returns to the charging mode and delays AC ballast operation for approximately three seconds to prevent false tripping of the AC ballast end-of-lamp life shutdown circuits.
- Can be used with one 14-54 watt, 2'-4' standard or high output T5, 17-55 watt, 2'-5' standard or high output T8, or 36-55 watt, 4-pin long compact fluorescent lamp. Also operates most Philips LED T8 lamps and most one, two, three or four lamp electronic standard energy saving and dimming AC ballasts
- Can be used with either switched or unswitched fixtures
- Produces 600-1325 lumens of initial emergency light output, depending on the number of lamps (one or two), wattage and type of lamps
- Suitable for indoor and damp locations and for sealed and gasketed fixtures, including fixtures rated for wet locations
- Battery
- High temperature maintenance free
- Nickel-Cadmium
- 7-10 year life expectancy
- Recharge time - 24 hours
- Ambient temperature - 32ºF - 122ºF
- Test switch - Single pole
- AC input current - 180mA
- Illumination time - 90 minutes
LP600 Lamp Compatibility:
- 1 lamp 24-54 watt T5/HO miniature bipin base
- 1 lamp 14-28 watt T5 miniature bipin base
- 1 lamp 36-55 watt long compact 4-pin (2G11) base
- 1 lamp 32 watt 4' T8 bipin base
- 1 lamp 40 watt 5' T8 bipin
- 1 lamp 14.5 watt 4' Philips LED T8 InstantFit bipin base
- 1 lamp 44 watt 4' T8/HO bipin base
