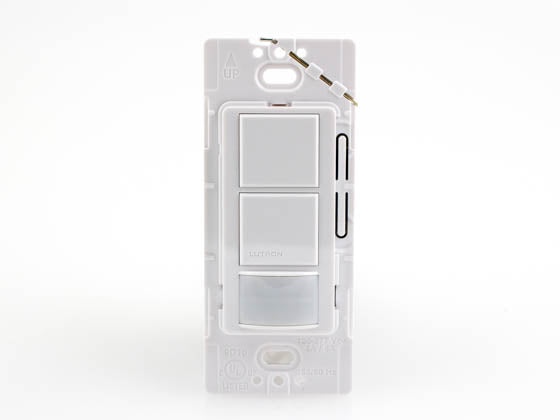

Lutron Maestro Dual Circuit Occupancy Sensing Switch

Lutron Maestro Dual-Circuit Occupancy Sensing Switch combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor. The sensor is intended to control two circuits or bi-level control of two circuits, as required by certain energy codes, i.e., ASHRAE.

Switches all lighting loads: Incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent and electronic fluorescent

• Passive infrared sensor with exclusive Lutron XCT Technology for minor motion detection
• 180° sensor field-of-view
• Tamper resistant PIR lens
• Up to 30 ft x 30 ft (9m x 9m) major motion coverage and 20 ft x 20 ft (6m x 6m) minor motion coverage
• Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time
• Can be set to Auto-On/Auto-Off or Manual-On/Auto-Off
• Meets title 24/Title 20 requirements for multi-level lighting
• Adjustable timeout for each circuit (1, 5, 15 or 30 minutes)
• Sensitivity adjustment (High/Low)
• Single-pole only
• 6 A of lighting load per circuit at 120-277V
• 4.4 A (1/6 HP) of fan load per circuit at 120V
• Crush/tamper resistant lens
• Smart Ambient Light Detection (ALD)

Wallplate not included.  A screwless wallplate can be purchased separately.  See Lutron # CW-1-WH.
