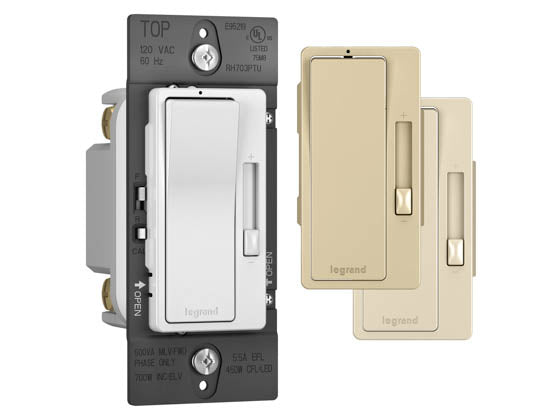

This Legrand/Wattstopper Radiant RH4FBL3PTC is a single pole/3-Way dimmer easily turns the lights on and off with the paddle switch for 0-10V fluorescent and LED. While the lights are on, use the separate slider control to adjust lights to your perfect level. Â
Ideal Application:Â Single room with 0-10V dimming LED fixtures.
Wallplate not included. A screwless wallplate can be purchased separately. See # RWP26W.Â
Part of Wattstopper's new Radiant collection
For use with 0-10V, 4-wire, 120V 10A/277V 5A LED and fluorescent dimming
Comes with three interchangeable face colors: Ivory, White and Light Almond
Self-calibration feature allows you to select lamp type, eliminating flicker and poor performance
Convenient operation - Combines On/Off paddle switch with separate slider for dimming control
Designed for single-pole (switch-lights) applications where lights are turned off/on or dimmed from one location, or 3-way (switch-lights-switch) applications where lights can be turned off/on or dimmed from at least two locations
Wider slide controller for easier dimming operation
Constant memory returns lights to previous level after a power failure
White LED glows when dimmer is OFF for easy location in the dark
No derating required for one and two gang applications
