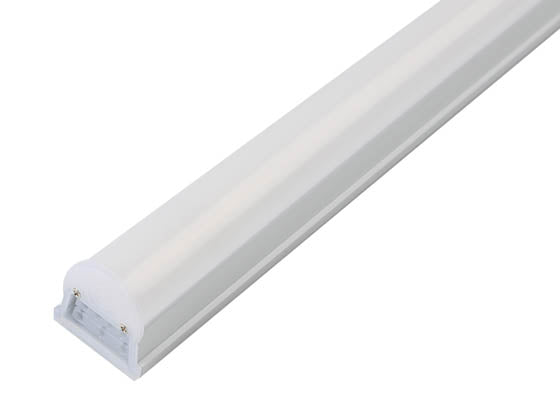

Light Efficient Design Dimmable 19" BarKit LED Linear Retrofit Kit or Fixture - Wattage and Color Selectable

Light Efficient Design's dimmable wattage selectable (6/9/12 watts) and color selectable (2700K/3000K/3500K) 19" LED linear fixture is ideal for either a retrofit kit application in troffers, vapor tights, wraps, low bays or utility strips, or a fixture in stairwells, linear ambient, cove lighting and other applications. Retrofits existing fluorescent fixtures quickly with a unique magnetic design and quick connector technology.

• Use as a retrofit kit or fixture
• Included with the BarKit:
  • 2 surface mount magnetic clips with easy bend and break lines
  • 4 - 1/4" hex head self drilling screws
  • 1 flex setting cover
• Power cable not included - sold separately
• Internal LED driver
• 0-10V dimming. Compatible with Lutron DVSTV-WH and NTSTV-DV-WH, and Legrand/Wattstopper TSD4FBL3PTC and RH4FBL3PTC dimmers
• Factory default settings at 2700K and 6 watts
• Adjustable wattage/lumen output with a three position slide switch. No tools required
• Pass-through 0-10V dimming allows all light bars to be dimmed together as a group
• Connect up to 40 light bars on one incoming power cable
• Suitable for surface mounting
• All surfaces are powder coated after fabrication
• Stylish frosted acrylic lens featuring bright, even illumination with no pixilation
• Suitable for dry and damp locations
• 10 year limited warranty
• Accessories available:
  • Power cable - RP-LBI-G1-IP-3F-DIM
  • Linking cables:
    • 6" - RP-LBI-LC-6IN-DIM
    • 12" - RP-LBI-LC-12IN-DIM
  • Bracket - RP-LBI-5MM-10P - Sold in a 10 pk. only
  • Seamless connector - RP-LBI-SSC-DIM
