Light Efficient Design

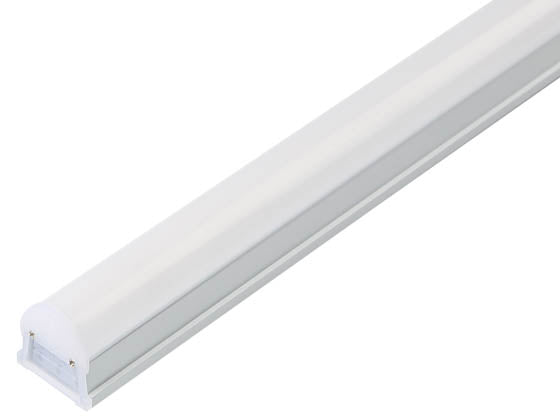

Light Efficient Design Dimmable 43" BarKit LED Linear Retrofit Kit or Fixture - Wattage and Color Selectable

Light Efficient Design Dimmable 43" BarKit LED Linear Retrofit Kit or Fixture - Wattage and Color Selectable

Regular price $54.79 USD
Regular price Sale price $54.79 USD
Sale Sold out
Shipping calculated at checkout.

Light Efficient Design's dimmable wattage selectable (10/15/25 watts) and color selectable (3500K/4000K/5000K) 43" LED linear fixture is ideal for either a retrofit kit application in troffers, vapor tights, wraps, low bays or utility strips, or a fixture in stairwells, linear ambient, cove lighting and other applications. Retrofits existing fluorescent fixtures quickly with a unique magnetic design and quick connector technology.

  • Use as a retrofit kit or fixture
  • Included with the BarKit:
    • 2 surface mount magnetic clips with easy bend and break lines
    • 4 - 1/4" hex head self drilling screws
    • 1 flex setting cover
  • Power cable not included - sold separately
  • Internal LED driver
  • 0-10V dimming. Compatible with Lutron DVSTV-WH and NTSTV-DV-WH, and Legrand/Wattstopper TSD4FBL3PTC and RH4FBL3PTC dimmers
  • Factory default settings at 4000K and 15 watts
  • Adjustable wattage/lumen output with a three position slide switch. No tools required
  • Pass-through 0-10V dimming allows all light bars to be dimmed together as a group
  • Connect up to 40 light bars on one incoming power cable
  • Suitable for surface mounting
  • All surfaces are powder coated after fabrication
  • Stylish frosted acrylic lens featuring bright, even illumination with no pixilation
  • Suitable for dry and damp locations
  • 10 year limited warranty
  • Accessories available:
    • Power cable - RP-LBI-G1-IP-3F-DIM
    • Linking cables:
      • 6" - RP-LBI-LC-6IN-DIM
      • 12" - RP-LBI-LC-12IN-DIM
    • Bracket - RP-LBI-5MM-10P - Sold in a 10 pk. only
    • Seamless connector - RP-LBI-SSC-DIM
  • DLC Standard for Direct Linear Ambient Luminaires - DLC ID S-F0N516
  • DLC Premium for Stairwell Luminaires - DLC ID S-HFJ9E4
